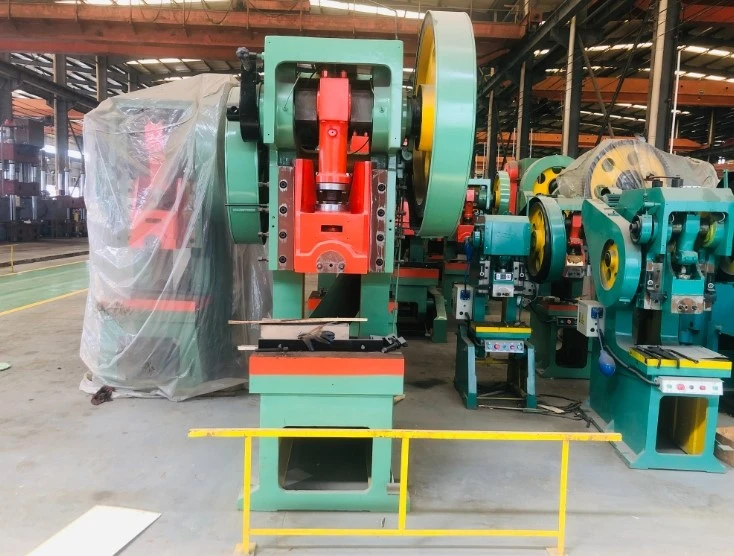

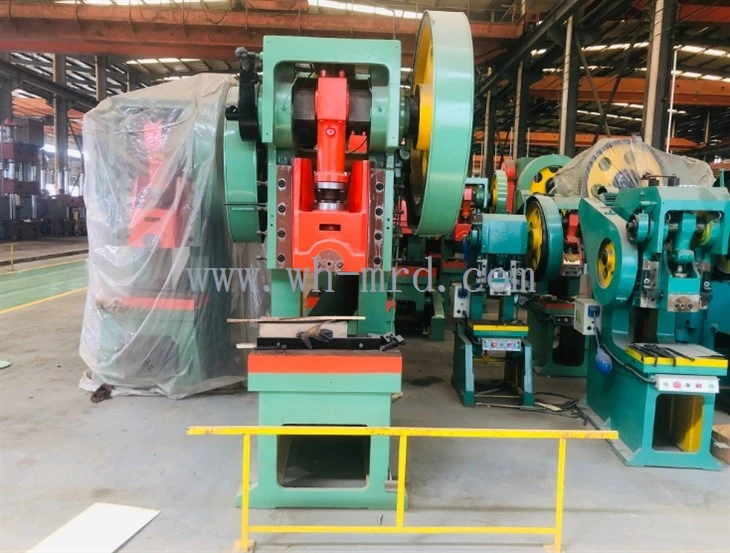

Mechanical Power Press

1. Maximum rigidity, minimal deflection–ensures accurate parts and extended tool life.
2. Welded steel structure with thick plates and large columns for superior stability.
3. Compact and practical with an aesthetically pleasing design.

Send Inquiry

Description

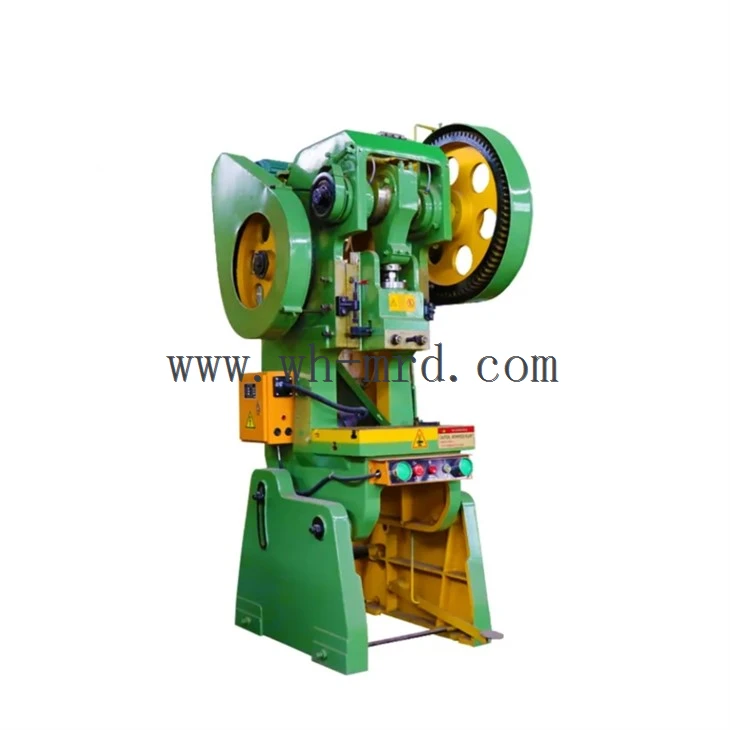

Mechanical Power Press

The C-frame Mechanical Power Press offers maximum rigidity and minimum deflection for accurate parts and long tool life.

User-friendly operation with minimal maintenance requirements.

Economical and dependable method for demanding manufacturing environments.

Mechanical Power Press parameters

Specifications(Mechanical Power Press)		Unit	J23-6.3	J23-10	J23-16	J23-25	J23-35	J23-40
Nominal force		KN	63	100	160	250	350	400
Nominal Stroke		mm	2	2	2	2.2	3.5	6
Slide Stroke		mm	35	45	55	65	80	90
Slide Strokes Per Minute	H-Speed	min-1	170	145	125
Slide Strokes Per Minute	L-Speed	min-1				55	50	45
Maximum Die Set Height		mm	150	180	220	270	290	320
Die Height Adjustment		mm	30	35	45	55	60	65
Throat Depth		mm	110	130	160	200	220	250
Distance Between Uprights		mm	150	180	220	270	280	340
Bottom size of slide	L×R	mm	140	170	200	250	250	300
Bottom size of slide	F×B	mm	120	150	180	220	220	260
Shank Hole Size	Dia	mm	30	30	40	40	40	50
Shank Hole Size	Depth	mm	55	55	60	60	60	70
Bolster size	L×R	mm	310	370	450	560	610	700
Bolster size	F×B	mm	200	240	300	370	400	460
Blanking Hole Diameter		mm	60	80	100	120	130	150
Bolster Thickness		mm	30	35	40	50	60	65
Max Angle of Inclination			45	35	35	30	30	30
Bolster Surface Height		mm	750	730	750	800	815	850
Overall Dimensions	F×B	mm	780	900	1150	1345	1460	1721
	L×R	mm	620	665	847	950	1058	1335
	H	mm	1503	1658	1910	2130	2225	2488
Distance Between Foundation Bolts	F×B	mm	530	610	780	920	1020	1060
Distance Between Foundation Bolts	L×R	mm	314	394	450	600	650	750
Motor	Power	Kw	0.75	1.1	1.5	2.2	4	5.5
Weight(Approximate)		Kg	400	576	1085	1780	2650	3540
