Products Description
Products parameters

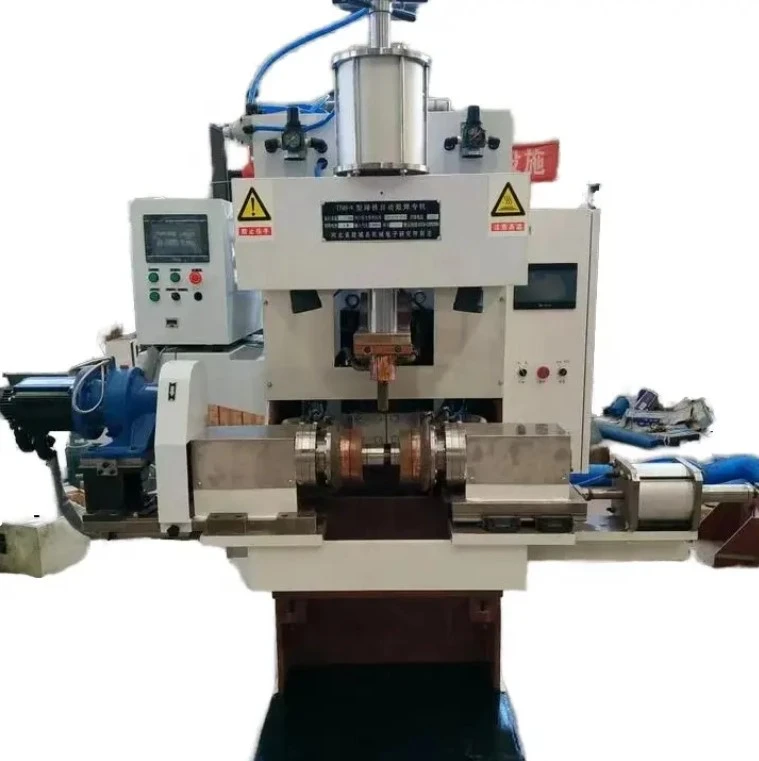

Brake Shoe Welding Equipment
Automobile Manufacturing
Used on automobile brake system production lines to weld various parts of brake shoes, ensuring vehicle braking safety.
Automobile Maintenance
Used for repairing brake shoes damaged by wear or collision during after-sales service, effectively reducing maintenance costs.
| Product Name | Brake Shoe Welding Equipment |
| Voltage | 380V |
| machinery capacity | 300 pcs/hour |
| Power | 3KW |
| Product Type | Automatic Seam Roll Welding Machine |
| Function | Brake shoes production |
| Key Selling Points | Efficient |
| output capacity | 150KVA |
| Welding thickness | 2mm |
| Weight | 1250KG |
| Key Machines | servo motor |
working principle
Frequency conversion principle:
Three-phase AC input is converted into DC through a rectifier circuit. The DC is then transformed into variable-frequency AC via an inverter circuit. The output frequency typically ranges from 40 to 150 Hz.
Welding Principle:
The frequency-converted current is transmitted through electrodes to the brake shoe's welding area. Resistance heat generated as current flows through the weldment causes the contact surfaces to quickly heat to a melting state. Under pressure, the two components fuse to form a solid welded joint.
Products Features
✅ Fully Automated for High Efficiency
Servo-motor driven with intelligent controls
Produces up to 300 brake shoes per hour
✅ Robust and Durable Design
Constructed from premium-grade materials
Built for continuous operation in demanding environments
✅ Smart, User-Friendly Operation
Simple interface with PLC and touchscreen control
Minimal manual intervention required
✅ Reliable and Safe
Integrated cooling system ensures safe, stable performance
This Brake Shoe Welding Equipment has a One-year warranty
Structure Composition
Power Supply System
Includes rectifier and inverter components to convert standard AC power into variable-frequency current suitable for welding.
Control System
Typically integrates a PLC (Programmable Logic Controller) and touch screen for precise control of welding parameters, including current, voltage, time, and frequency.
Mechanical Components
Includes:
Welding fixture: Secures the brake shoe to ensure accurate positioning.
Electrodes: Deliver current to the weld area.
Transmission mechanism: Moves the electrodes or weldment to enable welding in various positions.
Cooling System
Dissipates heat generated during the welding process using circulating water or air cooling, ensuring stable equipment performance and consistent weld quality.
