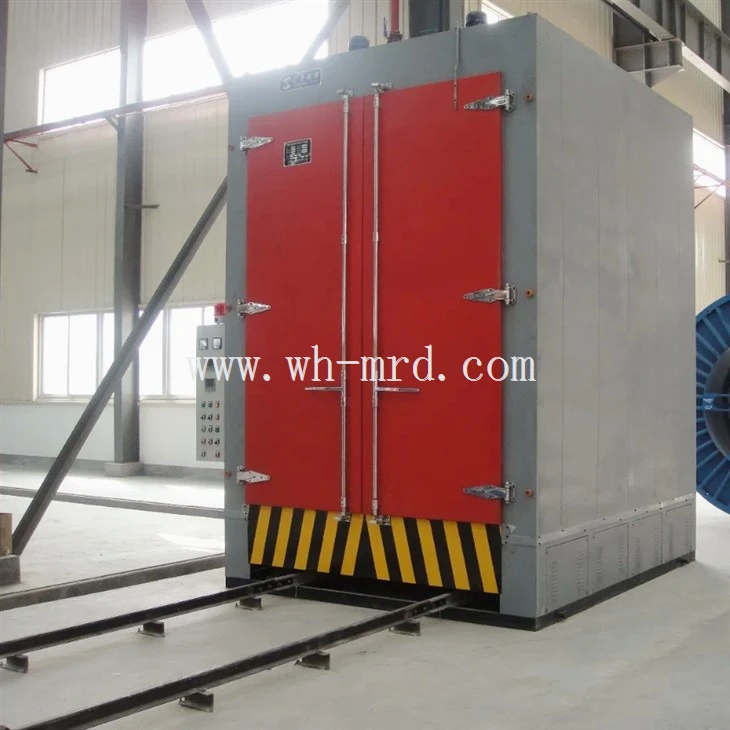

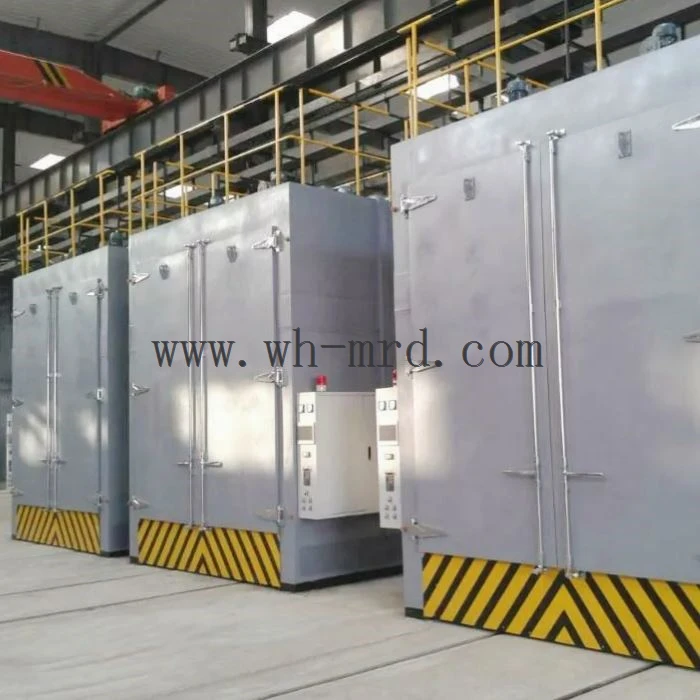

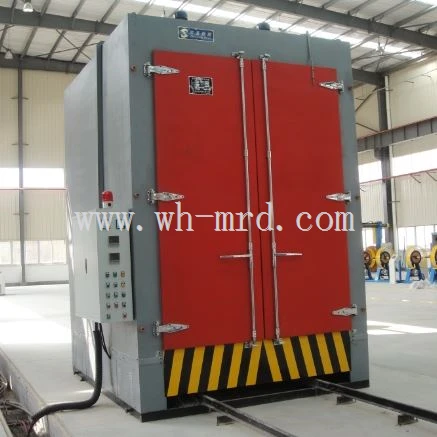

Brake Pad Heat Treat Oven
The Brake Pad Heat Treat Oven is a precision-engineered thermal processing unit designed to enhance the performance, durability, and safety of brake pads used in automobiles, motorcycles, and other vehicles.
By combining heat conduction, convection, and radiation, it ensures consistent and effective heat treatment, critical for optimizing the mechanical and frictional properties of brake pads.
Working principle
🔥 Heat Conduction
Transferring thermal energy from the surface inward via the temperature gradient across the brake pad.
🌪 Convection
Circulating hot air uniformly using forced ventilation to transfer heat efficiently to the product surface.
☀️ Radiation
Direct radiant energy from heating elements enhances heating efficiency, especially on surface areas.
Equipped with a real-time temperature monitoring system, the oven uses sensors to relay temperature data to a programmable temperature controller, ensuring the internal temperature follows the preset heat treatment cycle precisely and safely.
Applications
This Brake Pad Heat Treat Oven is essential in:
Brake Pad Manufacturing: Ensures consistency and structural integrity during mass production.
Product Development & R&D: Allows testing of new materials, adhesives, and formulations under controlled thermal conditions.
Automotive & Motorcycle Brake Systems: Enhances braking reliability and product life span.
The unit is also suitable for laboratory testing and small-scale production where precision and repeatability are critical.
Features
✅ 1. High Safety Design
Low-load surface winding electric heating tubes (≤350°C) to avoid combustion/explosion risk
Forced-air circulation maintains safe levels of any volatile gases
Safety pressure relief door minimizes risk in case of overpressure or fire
✅ 2. Premium Insulation Material
Uses high-quality aluminum silicate wool (ASW) for thermal insulation
Keeps outer surface temperature ≤ ambient temperature +10°C for safe handling
✅ 3. Superior Temperature Uniformity
Uniformity precision improved to ±3°C
Guarantees product consistency and optimal thermal performance
✅ 4. Advanced Control System
Configured with:
Distributed Control System (DCS)
PLC + HMI Touch Screen
Paperless recording and tracking of temperature data
✅ 5. Dual Heating Options
Choose between electric heating and natural gas, depending on facility requirements
✅ 6. Ergonomic & Humanized Design
Manual cart for product loading/unloading
Automatic lifting door for easy access
Wireless remote control for safer, convenient operation
Custom Order Guide
To receive a precise quote and tailored recommendation, please share the following:
📏 Working Room Size (DxWxH)
🔧Product Type to be dried or cured
🌡️ Maximum Operating Temperature
🗄️Number of Shelves Required
Once provided, we will respond with a detailed proposal and competitive pricing.
