Products Description
Machine Parameter
|
Product name
|

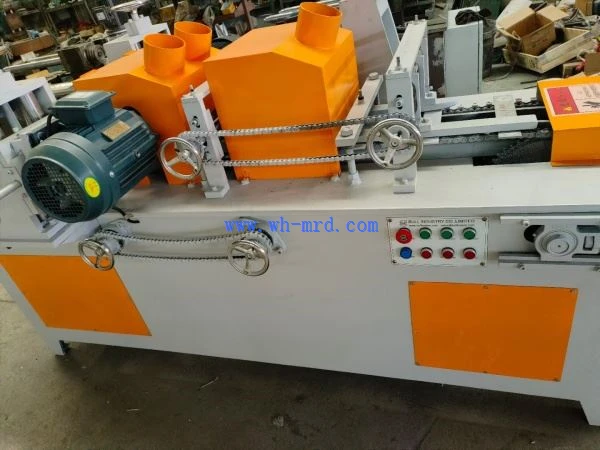

Brake Pad Chamfering Slotting Grinding Machine
|
|
Dimension(L*W*H)
|
3500mm*1300mm*1900mm
|
|
Weight (T)
|
3.5T
|
|
Machine Type
|
grinding slotting chamfering machine
|
|
slot Motor power
|
5.5kw
|
|
Power of flat grinding motor (two sets)
|
7.5KW/set
|
|
Chamfer motor power (two sets)
|
4.0KW/set
|
|
Drive motor power
|
750W
|
|
Production line running speed
|
75mm/s (adjustable)
|
|
Maximum length of workpiece
|
200mm
|
|
Production efficiency
|
(8 hours) 10000 pieces
|

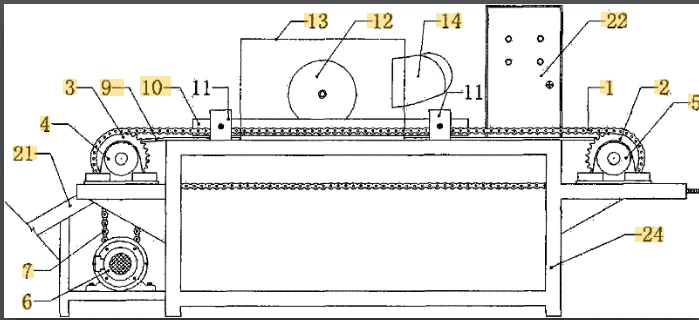

Working Principle
2 Cutting blades: cutting ceramic tiles
2 Grinding wheels: to grind edge of porcelain tiles
1 Chamfering wheels: to chamfer edge as original tiles
After-sale Service
1.Warranty: We provide warranty service for one year. If any quality problems occur during the warranty period, we will repair or replace the parts free of charge.
2.Technical Support: We provide long-term technical supports. If you have any problems while using it, please do not hesitate to contact our technical team. We offer fast comprehensive guidance or on-site support to help you resolve your issue.
3.Supply of spare parts: Timely delivery of spare parts to reduce downtime in case of failure. We have established a system of constant monitoring of common infrastructure.
4.Regular follow-up: We regularly follow up with customers to understand their device usage patterns, and collect their feedback and suggestions, in order to continuously improve the performance of our products and our service.
